Have you ever searched an area thoroughly, returned later with a different coil or detector setting, and suddenly found a coin you somehow missed? One possible explanation is target masking.
Target masking in metal detecting happens when one metal object interferes with your detector's ability to recognize another nearby target. This commonly occurs when a valuable non-ferrous target, such as a coin, is located close to an iron nail, bottle cap, or other piece of metal trash.
Target masking is one reason experienced detectorists often search promising locations more than once. Changing your sweep direction, recovery speed, discrimination settings, or search coil can sometimes reveal targets that were previously hidden.
Let's look at why target masking happens and how you can reduce it.
Table of Contents
How Recovery Speed and Coil Size Affect Masking
How to Recognize a Masked Target
Common Target Masking Mistakes
What Is Target Masking?
Target masking occurs when the signal from one metal object makes it difficult for your detector to recognize another object nearby.

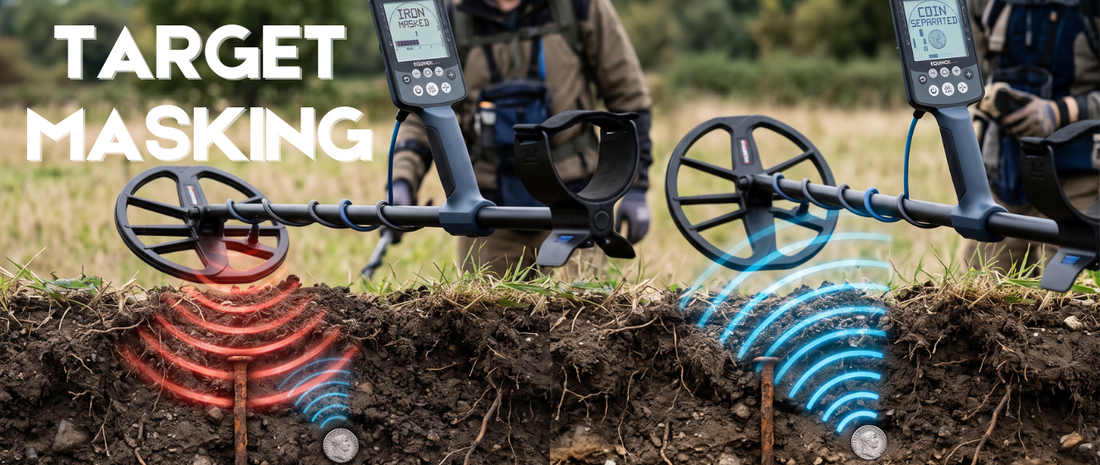

Imagine a silver coin buried next to an old iron nail.
As your search coil passes over the area, it receives signals from both objects. Depending on their spacing, depth, orientation, and your detector's settings, the response from the nail may interfere with the coin's response.
Instead of hearing a clear coin signal, you might hear:
- An iron tone
- A broken or clipped signal
- Jumping Target ID numbers
- A very short high tone
- An inconsistent response
- No obvious coin response at all
The coin is still within detecting range, the detector simply has difficulty separating its signal from the nearby object.
This is why target separation is so important when detecting in trash-heavy locations.
What Causes Target Masking?
Target masking usually happens when multiple metal objects are close enough that their responses overlap.
Several factors can make masking more likely.
Nearby Iron
Iron nails, screws, bolts, and other ferrous objects are common sources of masking.
This can be particularly challenging around:
- Old houses
- Farm fields
- Historical sites
- Campsites
- Demolished buildings
A valuable coin could be sitting only inches or even closer to an iron object.
Closely Spaced Trash
Iron isn't the only problem.
Pull tabs, bottle caps, foil, and other metal objects can also interfere with desirable targets located nearby.
Target Depth
A shallow piece of trash may produce a stronger response than a deeper desirable target beneath or beside it.
The detector may therefore emphasize the stronger target.
Target Orientation
Objects don't always lie perfectly flat underground.
A coin sitting on edge or a nail positioned at an unusual angle can change how the detector interprets the signals.
Detector Settings
Aggressive discrimination, inappropriate recovery-speed settings, and other adjustments can affect your ability to recognize targets positioned close together.
How Recovery Speed and Coil Size Affect Masking
Two important factors in target separation are recovery speed and search coil size.
Recovery Speed
Recovery speed describes how quickly your detector can respond to one target and then distinguish another nearby target.
A faster recovery speed can be helpful in trash-heavy areas because it may allow the detector to produce more distinct responses from closely spaced objects.
For example:
Nail → Coin → Nail
Instead of hearing one confusing response, an appropriate recovery speed may make it easier to recognize the desirable signal between the iron targets.
However, maximum recovery speed isn't automatically the best setting in every situation. The ideal setting depends on your detector and ground conditions.
Coil Size
Search coil size also affects target separation.
A large coil covers more ground at once, which can be useful in open areas. However, it may have multiple nearby objects within its detection field at the same time.
A smaller coil covers less ground and can often make it easier to isolate closely spaced targets.
That's why small coils are popular in:
- Trash-heavy parks
- Iron-filled historical sites
- Old homesites
- Areas with dense concentrations of targets
Think of it like trying to identify individual objects with a wide flashlight beam versus a narrower beam. A more focused search area can make separation easier.
How to Recognize a Masked Target
Masked targets don't always produce the clean, repeatable signals beginners are taught to look for.
Sometimes the clue is very subtle.
Listen for Short High Tones
You might hear mostly iron with a brief higher tone during part of the sweep.
Don't automatically ignore it.
Slow down and investigate.
Watch for Changing Target IDs
A masked target may cause Target ID numbers to jump between different ranges.
While unstable Target ID can have many causes, a nearby second target is one possibility.
Sweep From Another Direction
This is one of the easiest ways to investigate suspected masking.
If you receive an unusual signal, turn approximately 90 degrees and sweep over the same location again.
The relationship between the coil and the buried objects changes with your approach angle.
A target that was masked from one direction may become easier to recognize from another.
Shorten Your Sweep
Once you've located a questionable area, use small, controlled sweeps rather than continuing with wide swings.
This can help you isolate the different responses.
Listen More Than You Watch
Target ID is useful, but masked targets may not provide perfectly stable numbers.
Audio can sometimes provide clues that the display doesn't make immediately obvious.
How to Reduce Target Masking
You can't completely eliminate target masking, but good technique and appropriate settings can improve your chances of finding hidden targets.
1. Slow Down in Trashy Areas
Don't rush through locations containing lots of metal.
Shorter, controlled sweeps give you more opportunity to recognize brief signals between trash targets.
2. Scan From Multiple Directions
If a signal seems questionable, approach it from another angle.
A 90-degree change can sometimes reveal a completely different response.
3. Consider a Smaller Search Coil
If you're searching an iron-heavy or trash-filled location, a smaller coil can improve target separation.
You sacrifice some ground coverage, but you may gain the ability to isolate targets more effectively.
4. Adjust Recovery Speed
If your detector provides adjustable recovery speed, try increasing it when targets are densely packed.
Experiment rather than automatically selecting the maximum setting.
5. Be Careful With Discrimination
Heavy discrimination can make certain mixed or partially masked responses harder to recognize.
If you're searching a promising historical location, consider using less discrimination and listening carefully to the full range of signals.
6. Investigate Unusual Repeatable Signals
Not every valuable target sounds perfect.
A clipped or partially repeatable high tone surrounded by iron may deserve another look.
7. Search Good Locations More Than Once
Changing your:
- Search direction
- Coil
- Settings
- Sweep speed
can sometimes reveal targets you didn't recognize during the first hunt.
Common Target Masking Mistakes
❌ Assuming Every Good Target Gives a Perfect Signal
Targets surrounded by trash may produce messy or inconsistent responses.
A perfect Target ID isn't guaranteed.
❌ Searching Too Quickly
Fast, wide sweeps make subtle responses easier to miss.
Slow down when you're working an area with lots of iron or trash.
❌ Using Only One Sweep Direction
Searching exclusively from one direction can leave masked targets undiscovered.
Try searching promising areas from multiple directions.
❌ Rejecting Too Much Iron
Heavy discrimination can make detecting quieter, but quieter doesn't necessarily mean better.
Sometimes useful information is contained within those mixed signals.
❌ Assuming a Bigger Coil Is Always Better
Large coils can offer excellent coverage and depth advantages in some conditions, but small coils often perform better when your priority is separating closely spaced targets.
❌ Trusting Target ID Alone
Target ID is an estimate.
When masking occurs, the number displayed may be influenced by more than one target.
Combine Target ID with audio, sweep direction, and repeatability before deciding whether to dig.
Frequently Asked Questions
1. What does target masking mean in metal detecting?
Target masking happens when one metal object interferes with your detector's ability to recognize another nearby object. It commonly occurs when desirable targets are located close to iron or other metal trash.
2. Can iron hide coins from a metal detector?
Yes. An iron object located near a coin can interfere with the detector's response and make the coin more difficult to recognize.
3. Does a smaller coil help with target masking?
Often, yes. Smaller coils generally provide better target separation in areas where many metal objects are close together.
4. Does recovery speed help with masked targets?
A faster recovery speed can help a detector distinguish closely spaced targets, particularly in trash-heavy environments. However, the ideal setting varies by detector and conditions.
5. Why does a good target only beep from one direction?
Nearby metal, target orientation, depth, or ground conditions may affect the signal. Scan the target from several directions before deciding what it might be.
6. Should I dig signals with jumping Target ID numbers?
It depends on your hunting goals and location. An unstable ID isn't automatically trash. Deep targets, nearby metal, mineralized soil, and target orientation can all produce inconsistent readings.
7. Can target masking make my detector completely miss a target?
Yes. In some situations, the response from a nearby object can make another target extremely difficult to recognize.
